Description

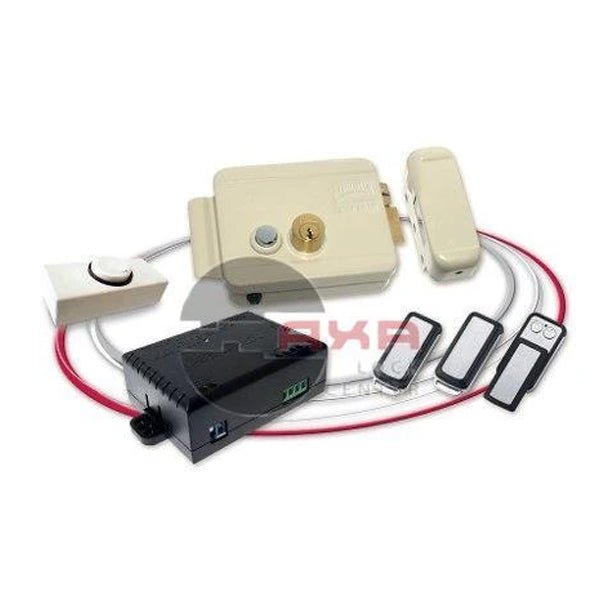

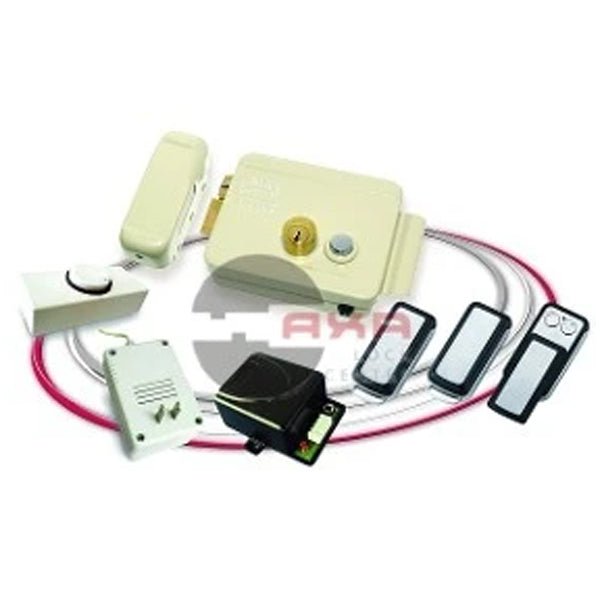

- Easy-install version lock
- The lock installs on doors 35 to 45 mm thick
- The lock operates mechanically (without electricity) by using a key from the outside and by means of the release button from the inside
- The key from the inside blocks the button's function, preventing mechanical operation of the latch
- Operates with Y-55 key for 5 combination pins
- Key-way providing greater protection against picking
- Steel plate casing, cover and strike plate with electrostatic paint finish
- Bodies, one of the latches has a steel bearing and solid brass cylinders
- Momentary switch button included
- With a single pulse of the button, the circuit is closed to energize the solenoid, to actuate the lock's latch, until the door is closed again
- Input 110 ~ 127Vac 60Hz and output 12Vdc
- Remote control station with operating current ±6mA, with operating voltage of 12Vdc, operating temperature of -40°C to +80°C, operating frequency of 433MHz
- The remote control uses an LR27A or 8LR50 12Vdc battery and reaches a distance of up to 40 m
