Description
USES:

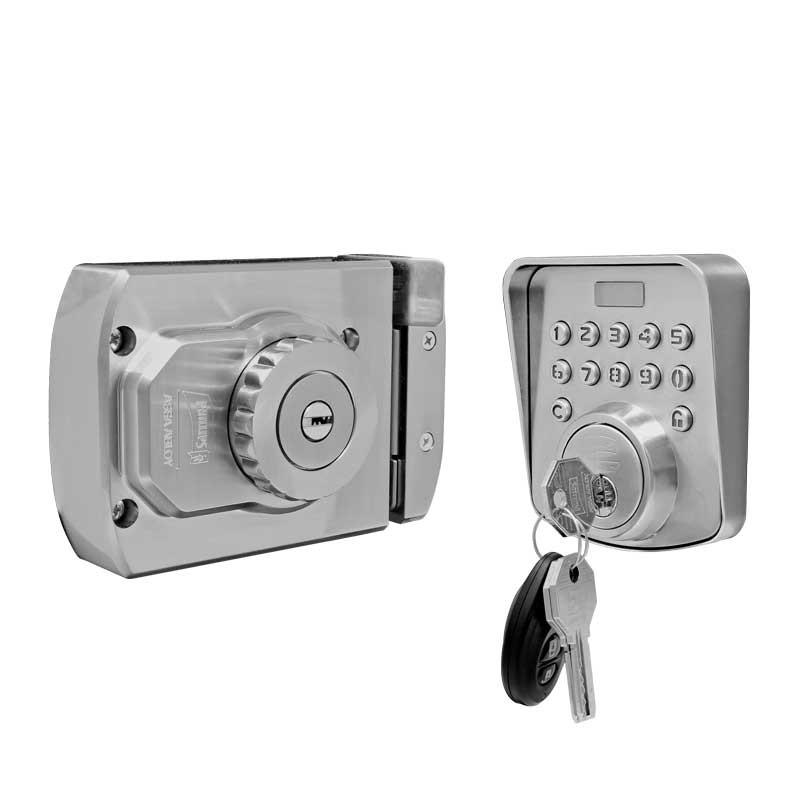

Reversible “XTR Phillips” surface-mounted lock for use on main entrance doors or gates,
for interiors and exteriors, with digital technology and a thickness of 38 to 50 mm
VERSIONS:
“XTR Phillips” reversible version, unique on the market in a Satin Nickel finish
APPLICATIONS:
Surface-mounted doors
FEATURES:
• Surface-mounted installation, on left or right-hand doors, that open outwards
(out-swing) or inwards (in-swing), made of wood or metal
• It is installed using a base plate, weldable or screwable

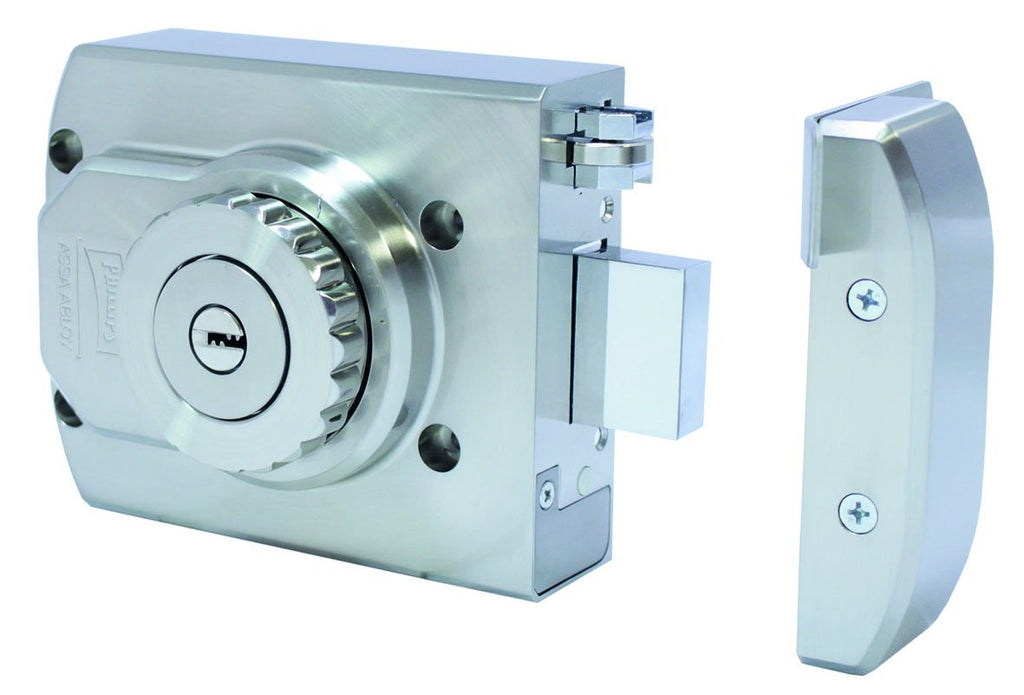

• Locks the door with a metal deadbolt, rectangular in shape, and a
rotating roller
• Requires 4 AA batteries (included), no need to connect to the electrical grid

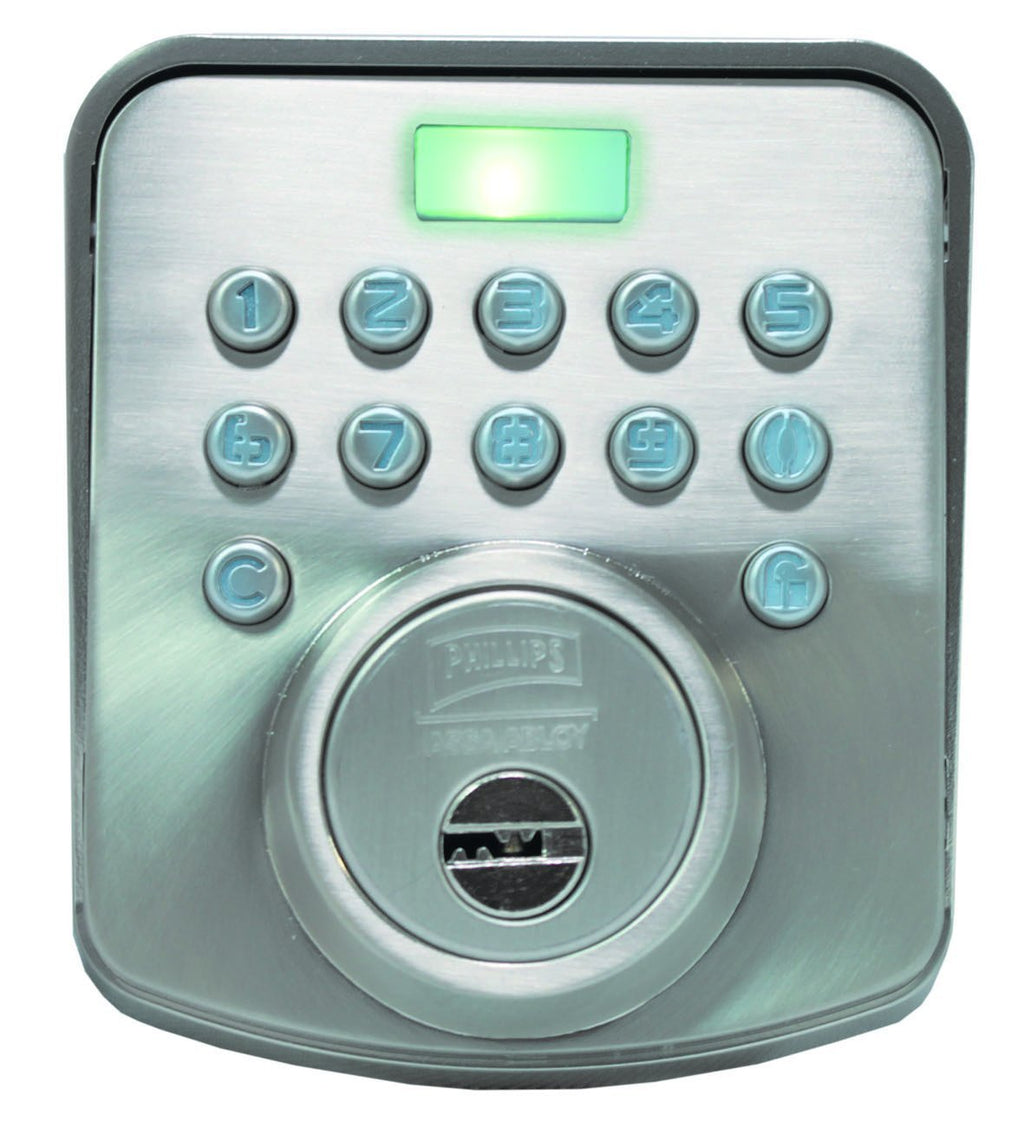

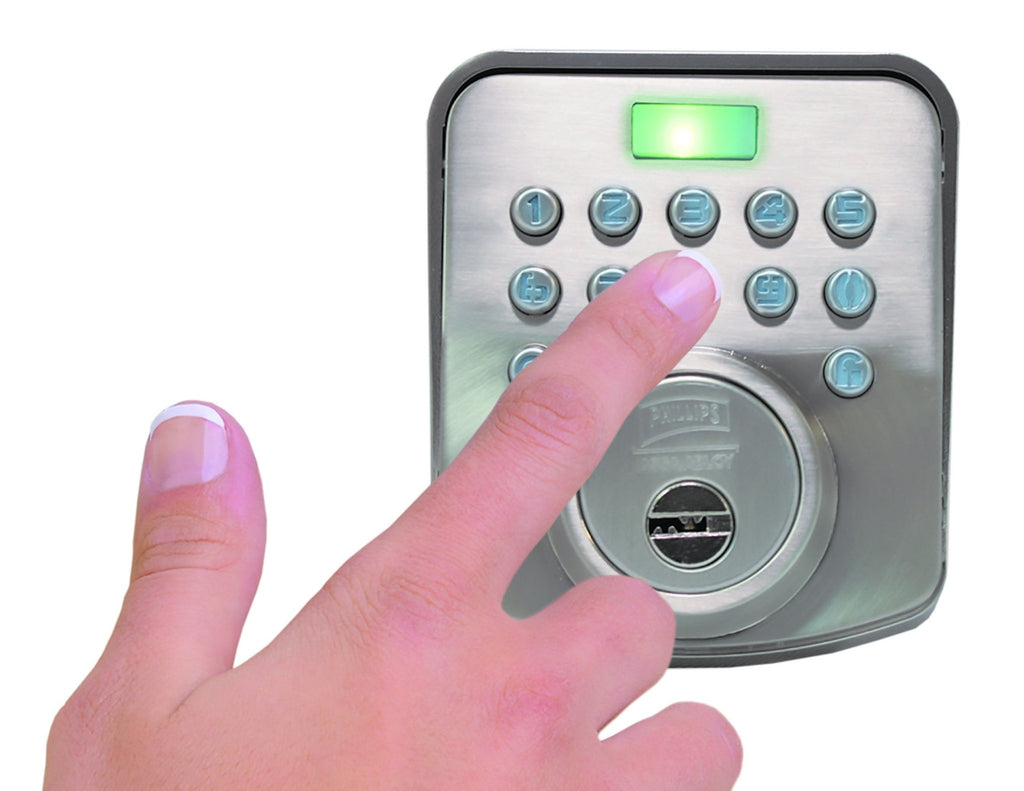

• Operates from the inside with a knob or a key, and from the outside with a
keypad or a key
• It is low maintenance (lubrication and battery changes)
• Easy to install with basic tools
• 3 operating modes (gate mode, secure mode, and free/passage mode)
• Includes screws
• Robust design
• The security system is with a dimple key (3 keys) with 5 pins on the outside and 3 pins
on the inside
• Stores up to 20 different user codes, configurable with the keypad
• Deadbolt with automatic or manual configurable operation
• Backset is 60 mm
• Configurable factory master code from 2 to 8 digits
• Automatic lock after 4 failed attempts, 3 min waiting time for unlock
Reversible “XTR Phillips” surface-mounted lock for use on main entrance doors or gates,
for interiors and exteriors, with digital technology and a thickness of 38 to 50 mm
VERSIONS:
“XTR Phillips” reversible version, unique on the market in a Satin Nickel finish
APPLICATIONS:
Surface-mounted doors
FEATURES:
• Surface-mounted installation, on left or right-hand doors, that open outwards
(out-swing) or inwards (in-swing), made of wood or metal
• It is installed using a base plate, weldable or screwable
• Locks the door with a metal deadbolt, rectangular in shape, and a
rotating roller
• Requires 4 AA batteries (included), no need to connect to the electrical grid
• Operates from the inside with a knob or a key, and from the outside with a
keypad or a key
• It is low maintenance (lubrication and battery changes)
• Easy to install with basic tools
• 3 operating modes (gate mode, secure mode, and free/passage mode)
• Includes screws
• Robust design
• The security system is with a dimple key (3 keys) with 5 pins on the outside and 3 pins
on the inside
• Stores up to 20 different user codes, configurable with the keypad
• Deadbolt with automatic or manual configurable operation
• Backset is 60 mm
• Configurable factory master code from 2 to 8 digits
• Automatic lock after 4 failed attempts, 3 min waiting time for unlock
