Description
USES:

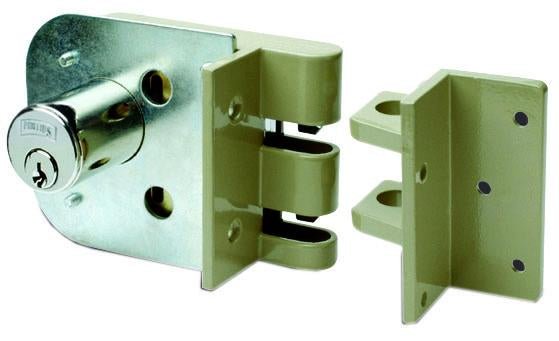

• Rim lock for swing or sliding metal or wood doors
35 - 60 mm thick CL and up to 40 mm for IF®
VERSIONS:

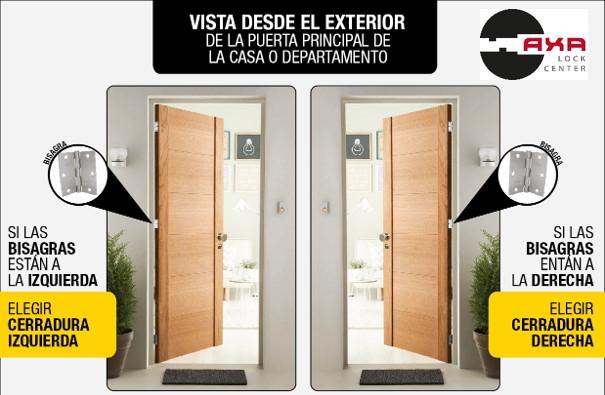

• Double Cylinder (DC) Classic and Instafacil. Available in left and right
FEATURES:
• Metal alloy deadbolt with integrated one-piece latch type
and with automatic closing
• Key operation on both sides
• Metal alloy security button on both versions
• Operates with PH-52 key for 5 combination pins
• Its mechanism has spool counter-pins that increase
security against picking
• Both versions are supplied with weldable metal plates to reinforce the installation
• The classic version is supplied with the loose exterior body
• The Instafacil (IF) version has the exterior body integrated into the case, which
allows for quick and easy installation
• Solid brass cylinders resistant to wear and corrosion
• Inner and outer body made of metal alloy
• Steel plate escutcheon
• Aluminum case and strike plate
BENEFITS:
• For greater security, opens with a key on both sides
• Automatic slam shut
• Five spool pins make picking difficult
• Rim lock for swing or sliding metal or wood doors
35 - 60 mm thick CL and up to 40 mm for IF®
VERSIONS:
• Double Cylinder (DC) Classic and Instafacil. Available in left and right
FEATURES:
• Metal alloy deadbolt with integrated one-piece latch type
and with automatic closing
• Key operation on both sides
• Metal alloy security button on both versions
• Operates with PH-52 key for 5 combination pins
• Its mechanism has spool counter-pins that increase
security against picking
• Both versions are supplied with weldable metal plates to reinforce the installation
• The classic version is supplied with the loose exterior body
• The Instafacil (IF) version has the exterior body integrated into the case, which
allows for quick and easy installation
• Solid brass cylinders resistant to wear and corrosion
• Inner and outer body made of metal alloy
• Steel plate escutcheon
• Aluminum case and strike plate
BENEFITS:
• For greater security, opens with a key on both sides
• Automatic slam shut
• Five spool pins make picking difficult
